iAquaLink enabled
Features a built-in WiFi chip that allows you to monitor and control remotely, for complete control at your fingertips anytime, anywhere.
Product description

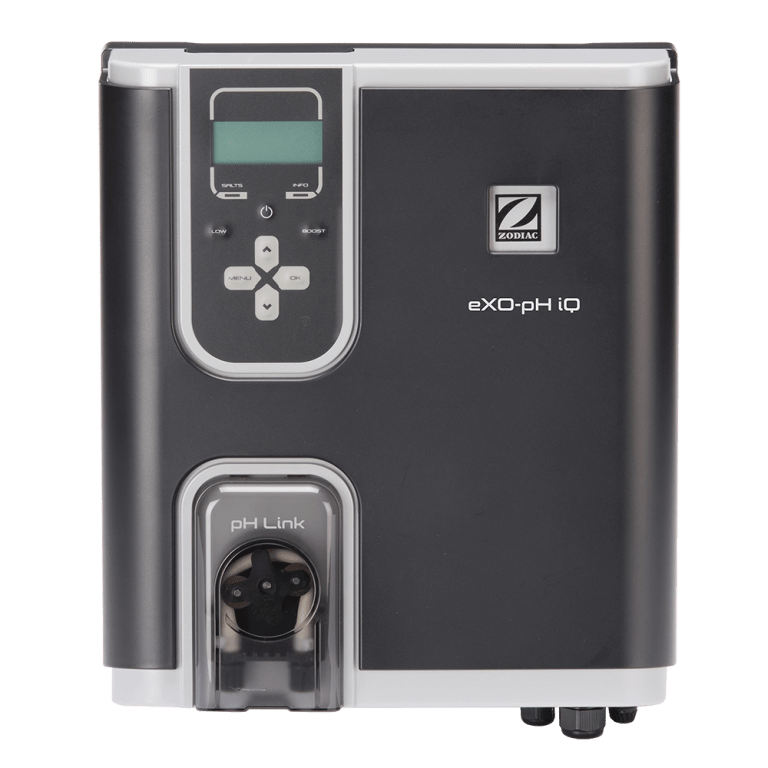

The EXO iQ pH Mid is a smart saltwater chlorinator with built-in WiFi, a pH sensor and automatic acid dosing, designed for medium pools up to 75,000 litres in a mild climate.
The EXO iQ pH Mid builds on the connected automation of the EXO iQ by adding automatic pH management for medium pools up to 75,000 litres in a mild climate. A premium pH sensor and dosing pump actively balance water acidity, reducing the need for manual testing and adjustment. Combined with built-in WiFi and iAquaLink app control, the unit provides clear visibility of water balance and simple remote operation. The Aux2 port allows the unit to control a LumiPower light relay box or integrate a pool heater (one option). Designed for reliable long term performance in Australian conditions, the EXO iQ pH Mid offers a balanced, consistent and connected pool care experience.
Specifications
Product information
Features a built-in WiFi chip that allows you to monitor and control remotely, for complete control at your fingertips anytime, anywhere.
Monitors and manages your basic water parameters, keeping pH levels in balance and perfectly regulated. The eXO also features automated chlorine management via a commercial grade ORP sensor (only applicable to PRO models).
Note: Acid should be diluted at least 1:1 (water:acid) however it is also acceptable to dilute as heavily as 2:1 (water:acid) depending on your preferred maintenance routine.
Automatically regulates output in cold water which prevents excessive wear and tear on your cell, helping to reduce costs.
Provides greater control over pump speed and helps reduce energy consumption. The eXO can communicate to RS485 enabled pumps.
| Specification | WW000185PH | WW000186PH |
|---|---|---|
Model | Mid | Large |
Cell Output | 25gm/h | 35gm/h |
Maximum Average Pool Size | 75,000L (based on a mild weather climate, please adjust for cooler or hotter) | 100,000L (based on a mild weather climate, please adjust for cooler or hotter) |
Recommended Salinity | 4,000ppm | 4,000ppm |
Plumbing Capacity | 40mm / 50mm | 40mm / 50mm |
Operating Mode(s) | Normal = adjustable by 10% increments from 0% - 100%. Low Mode = adjustable range 0 to 30%. Boost Mode = continuous 100% for 24hrs. | Normal = adjustable by 10% increments from 0% - 100%. Low Mode = adjustable range 0 to 30%. Boost Mode = continuous 100% for 24hrs. |
Equipment Control | Filter pump: Any single speed pump or Zodiac® variable speed pump. Lights: Any single colour light or any Zodiac/Jandy sequence Muliticolour light (note will require additional relay box part number WW000222) | Filter pump: Any single speed pump or Zodiac® variable speed pump. Lights: Any single colour light or any Zodiac/Jandy sequence Muliticolour light (note will require additional relay box part number WW000222) |
Cell Protection | Temperature sensor controls chlorine output in cold water conditions assiting to protect cell against excessive wear and tear. | Temperature sensor controls chlorine output in cold water conditions assiting to protect cell against excessive wear and tear. |
Warning Indicators | "Low salt" indicator light: Reduced production to protect the electrode. “No flow” message: Production is interrupted as long as conditions are not ideal. | "Low salt" indicator light: Reduced production to protect the electrode. “No flow” message: Production is interrupted as long as conditions are not ideal. |
Power Supply / Operating Power | 196W; 110-240 VAC; 50/60Hz | 196W; 110-240 VAC; 50/60Hz |
Power Pack Dimensions (H x W x D) | 370mm x 320mm x 100mm | 370mm x 320mm x 100mm |
Cell Dimensions (H x W x D) | 160mm × 320mm × 110mm | 160mm × 320mm × 110mm |
Acid Dilution | minimum 1:1 (acid:water) can be up to 2:1 (acid water) | minimum 1:1 (acid:water) can be up to 2:1 (acid water) |
