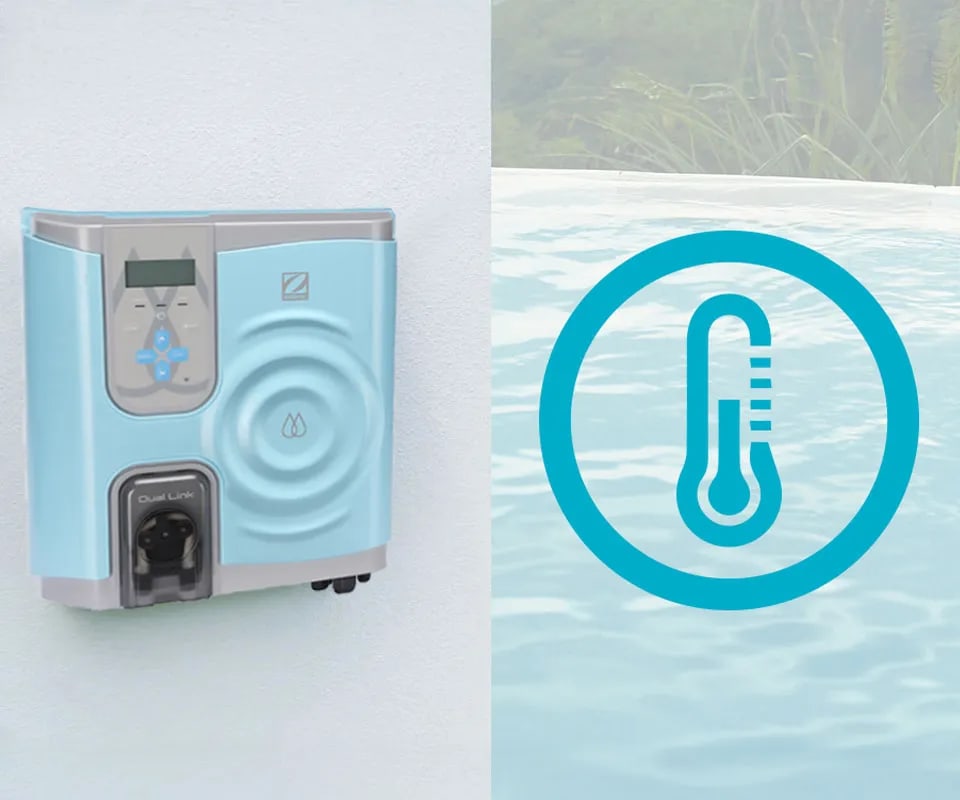

Smart temperature sensor
Automatically regulates output in cold water which prevents excessive wear and tear on your cell, helping to reduce costs.
Product description
Top-tier mineral chlorinator with full automation: pH + ORP regulation + smart control.

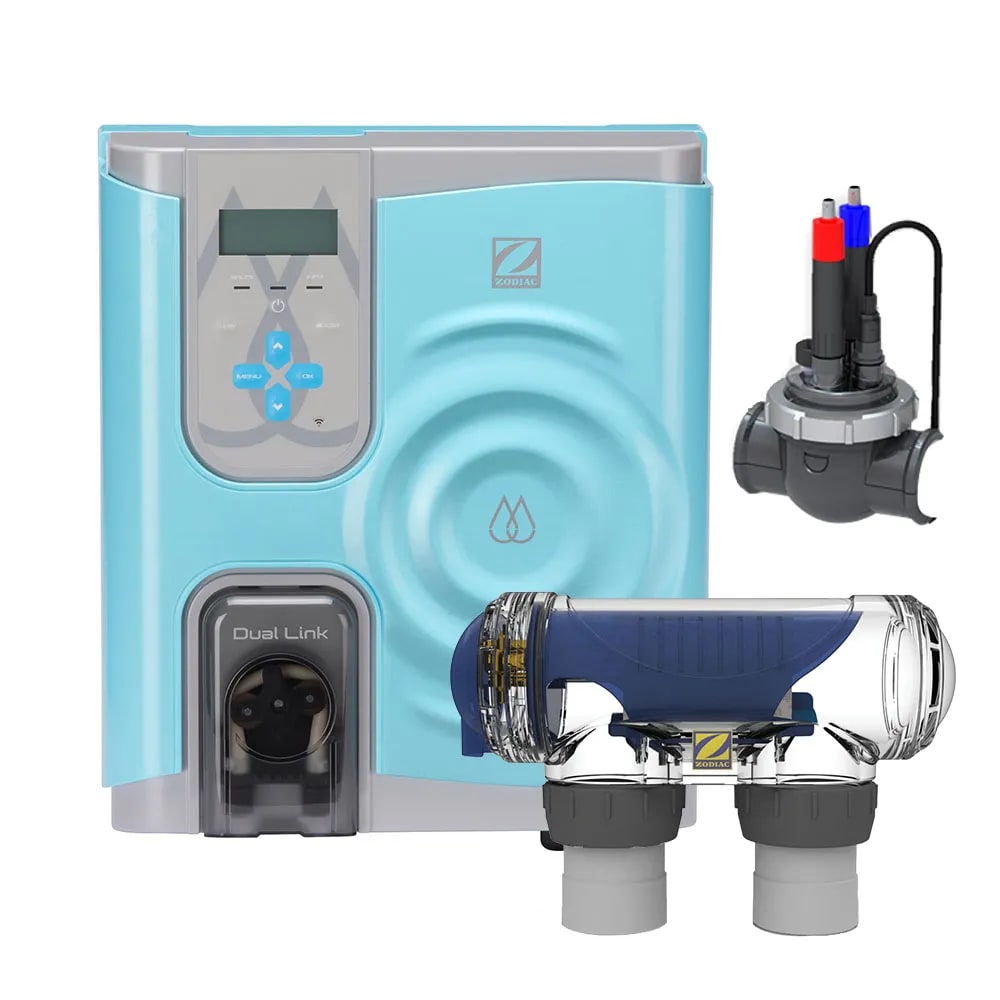

Hydroxinator® iQ PRO is the premium member of the Hydroxinator family, engineered to autonomously manage your pool’s sanitisation and water chemistry. With built-in pH and ORP (oxidation-reduction potential) sensors, it continuously adjusts chlorine and acidity. Combined with WiFi, smart temperature sensing, and pump control, it’s a comprehensive, low-effort solution.
Specifications
Product information
Automatically regulates output in cold water which prevents excessive wear and tear on your cell, helping to reduce costs.

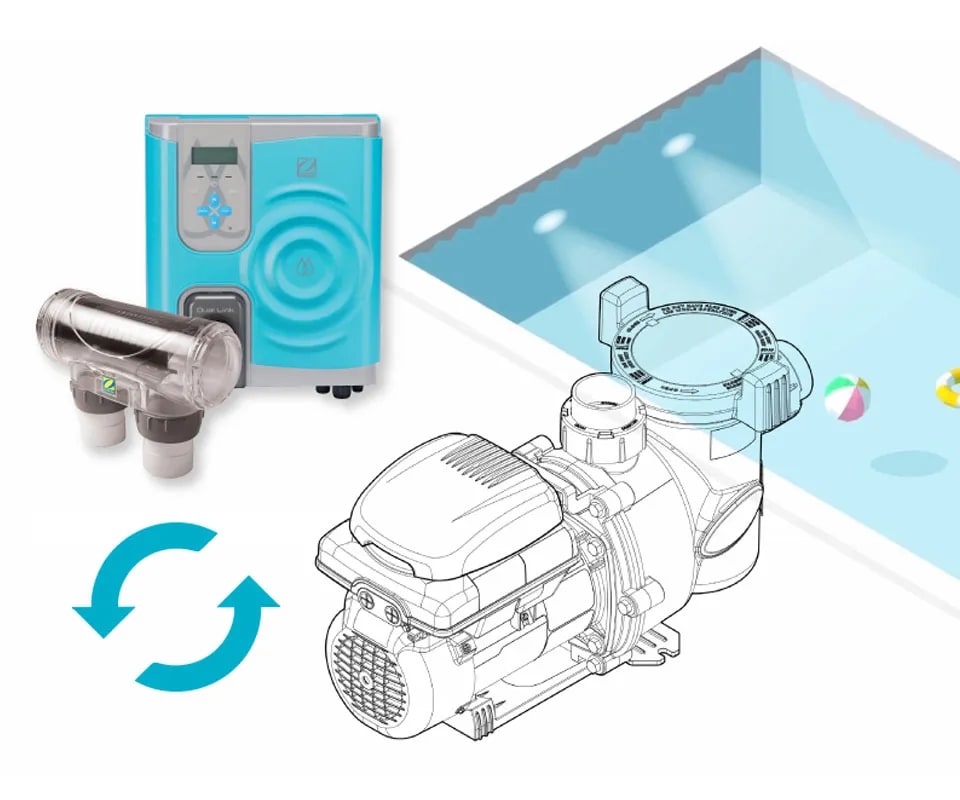

Provides greater control over pump speed and helps reduce energy consumption. The Hydroxinator can communicate to Zodiac RS485 enabled pumps.
Features a built-in WiFi chip that allows you to monitor and control remotely, for complete control at your fingertips anytime, anywhere.
Monitors and manages your basic water parameters, keeping pH levels in balance and perfectly regulated. The Hydroxinator also features automated chlorine management via a commercial grade ORP sensor.
Note: Acid should be diluted at least 1:1 (water:acid) however it is also acceptable to dilute as heavily as 2:1 (water:acid) depending on your preferred maintenance routine.
| Specification | WW000198PRO | WW000199PRO |
|---|---|---|
Model | Mid | Large |
Cell Output | 25gm/h | 35gm/h |
Maximum Average Pool Size | 75,000L (based on a mild weather climate, please adjust for cooler or hotter) | 100,000L (based on a mild weather climate, please adjust for cooler or hotter) |
Recommended Salinity | 4,000ppm | 4,000ppm |
Plumbing Capacity | 40mm / 50mm | 40mm / 50mm |
Operating Mode(s) | Normal = adjustable by 10% increments from 0% - 100%. Low Mode = adjustable range 0 to 30%. Boost Mode = continuous 100% for 24hrs. | Normal = adjustable by 10% increments from 0% - 100%. Low Mode = adjustable range 0 to 30%. Boost Mode = continuous 100% for 24hrs. |
Equipment Control | Filter pump: Any single speed pump or Zodiac® variable speed pump. Lights: Any single colour light or any Zodiac/Jandy sequence Muliticolour light (note will require additional relay box part number WW000222) | Filter pump: Any single speed pump or Zodiac® variable speed pump. Lights: Any single colour light or any Zodiac/Jandy sequence Muliticolour light (note will require additional relay box part number WW000222) |
Cell Protection | Temperature sensor controls chlorine output in cold water conditions assiting to protect cell against excessive wear and tear. | Temperature sensor controls chlorine output in cold water conditions assiting to protect cell against excessive wear and tear. |
Warning Indicators | "Low salt" indicator light: Reduced production to protect the electrode. “No flow” message: Production is interrupted as long as conditions are not ideal. | "Low salt" indicator light: Reduced production to protect the electrode. “No flow” message: Production is interrupted as long as conditions are not ideal. |
Power Supply / Operating Power | 197W; 110-240 VAC; 50/60Hz | 197W; 110-240 VAC; 50/60Hz |
Power Pack Dimensions (H x W x D) | 370mm x 320mm x 100mm | 370mm x 320mm x 100mm |
Cell Dimensions (H x W x D) | 160mm × 320mm × 110mm | 160mm × 320mm × 110mm |
