iAquaLink enabled
Features a built-in WiFi chip that allows you to monitor and control remotely, for complete control at your fingertips anytime, anywhere.
Product description
Smart, mineral chlorinator delivering gentle, silky water with full automation and app control.

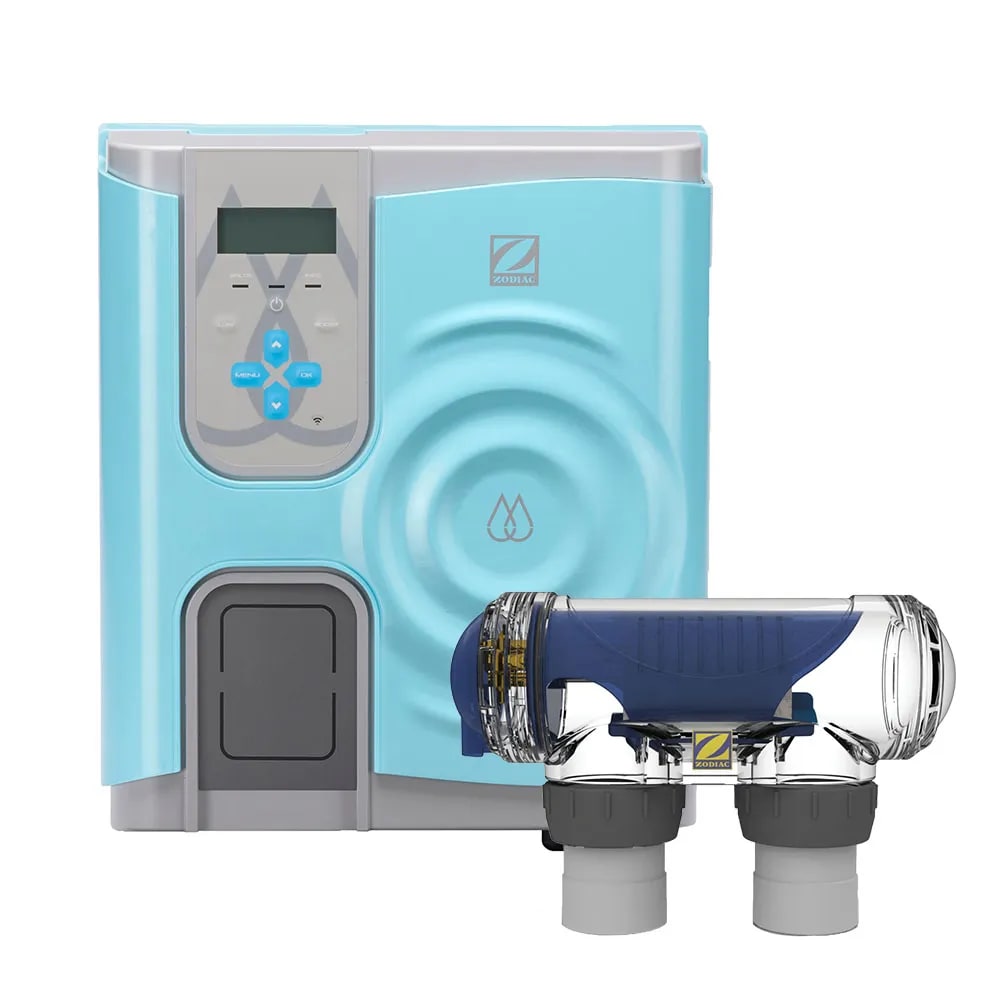

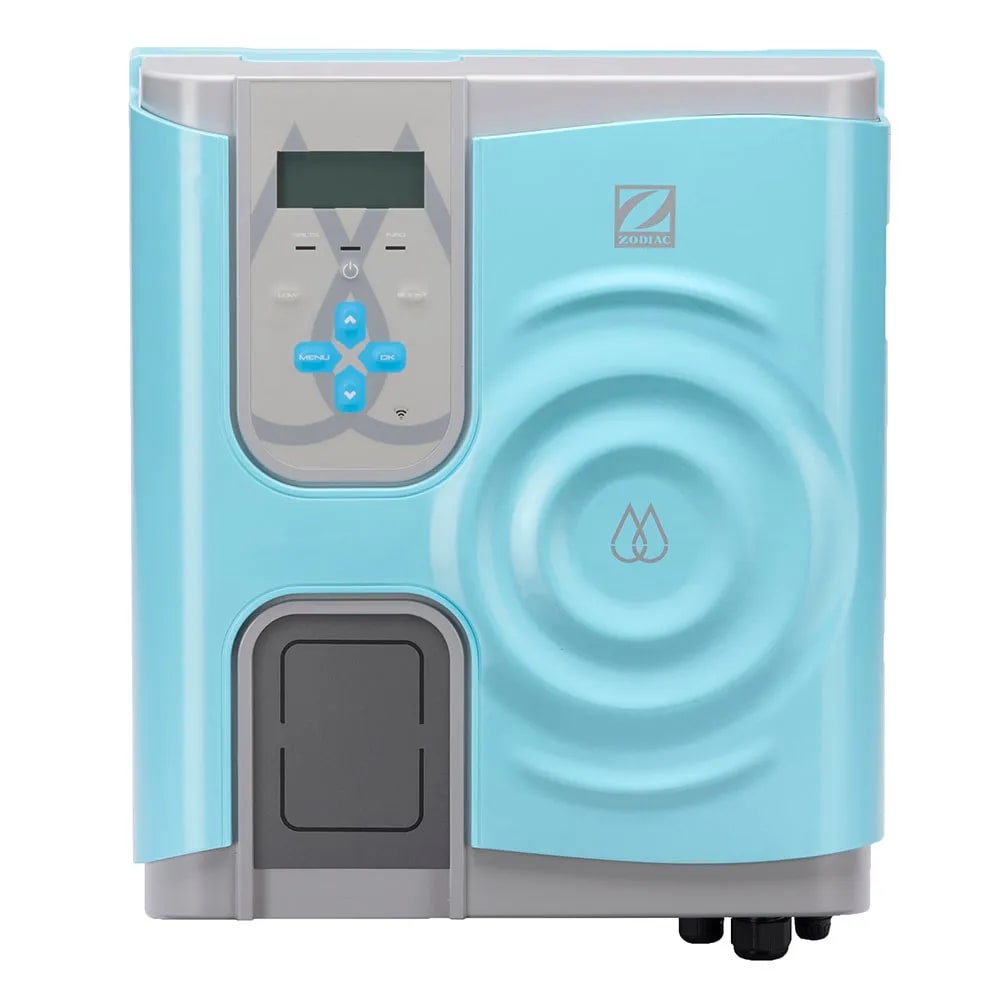

The Hydroxinator® iQ is the core of the MagnaPool mineral pool system — combining intelligent electrolysis with magnesium chemistry to deliver soft, clear water. It features a long-life reverse polarity (RP) cell, WiFi control via iAquaLink, temperature sensing, and pump integration. With optional pH / ORP upgrades, it becomes a full water chemistry manager.
Specifications
Product information
Features a built-in WiFi chip that allows you to monitor and control remotely, for complete control at your fingertips anytime, anywhere.
Automatically regulates output in cold water which prevents excessive wear and tear on your cell, helping to reduce costs.
Provides greater control over pump speed and helps reduce energy consumption. The Hydroxinator can communicate to Zodiac RS485 enabled pumps.
| Specification | WW000193 | WW000194 |
|---|---|---|
Model | Mid | Large |
Cell Output | 25gm/h | 35gm/h |
Maximum Average Pool Size | 75,000L (based on a mild weather climate, please adjust for cooler or hotter) | 100,000L (based on a mild weather climate, please adjust for cooler or hotter) |
Recommended Salinity | 4,000ppm | 4,000ppm |
Plumbing Capacity | 40mm / 50mm | 40mm / 50mm |
Operating Mode(s) | Normal = adjustable by 10% increments from 0% - 100%. Low Mode = adjustable range 0 to 30%. Boost Mode = continuous 100% for 24hrs. | Normal = adjustable by 10% increments from 0% - 100%. Low Mode = adjustable range 0 to 30%. Boost Mode = continuous 100% for 24hrs. |
Equipment Control | Filter pump: Any single speed pump or Zodiac® variable speed pump. Lights: Any single colour light or any Zodiac/Jandy sequence Muliticolour light (note will require additional relay box part number WW000222) | Filter pump: Any single speed pump or Zodiac® variable speed pump. Lights: Any single colour light or any Zodiac/Jandy sequence Muliticolour light (note will require additional relay box part number WW000222) |
Cell Protection | Temperature sensor controls chlorine output in cold water conditions assiting to protect cell against excessive wear and tear. | Temperature sensor controls chlorine output in cold water conditions assiting to protect cell against excessive wear and tear. |
Warning Indicators | "Low salt" indicator light: Reduced production to protect the electrode. “No flow” message: Production is interrupted as long as conditions are not ideal. | "Low salt" indicator light: Reduced production to protect the electrode. “No flow” message: Production is interrupted as long as conditions are not ideal. |
Power Supply / Operating Power | 197W; 110-240 VAC; 50/60Hz | 197W; 110-240 VAC; 50/60Hz |
Power Pack Dimensions (H x W x D) | 370mm x 320mm x 100mm | 370mm x 320mm x 100mm |
Cell Dimensions (H x W x D) | 160mm × 320mm × 110mm | 160mm × 320mm × 110mm |
MagnaPool Hydroxinator iQ - Datasheet
MagnaPool Hydroxinator iQ - Manual
