Product description
Elegant, discreet, effective.
Suitable for use in all seasons, from intensive defrosting to cooling the pool, the Z400 iQ Heat Pump is our latest and greatest mid-sized residential pool heater. Packed with features and built to last, you can count on the Z400 iQ to fulfill your heating needs for years to come. And, factory-fitted with our iAquaLink WiFi technology, you can take control with your smartphone!
Specifications
Product information
The Z400 iQ connects to your Wi-Fi network and can be controlled from your smartphone via the iAqualink™ app. You can then remotely set and consult its different modes of operation: water temperature, heating/cooling, standby, silence mode and more!

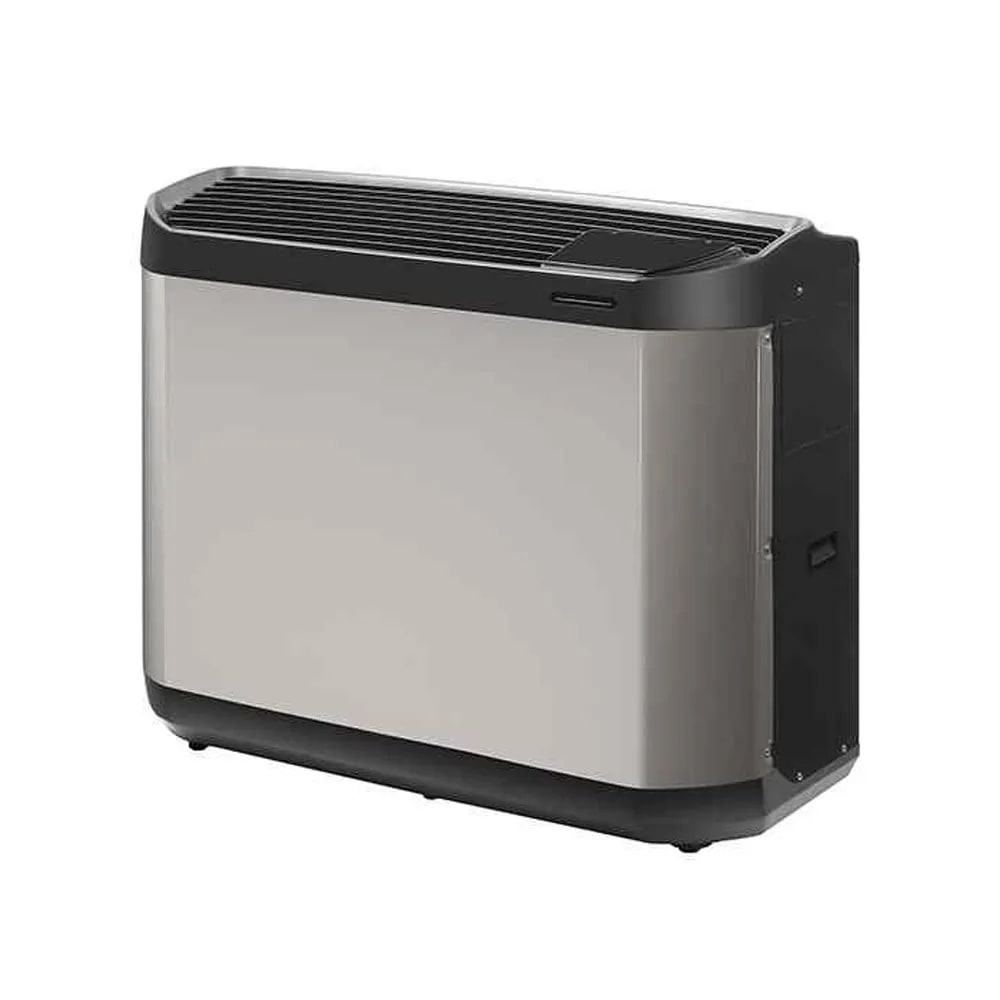

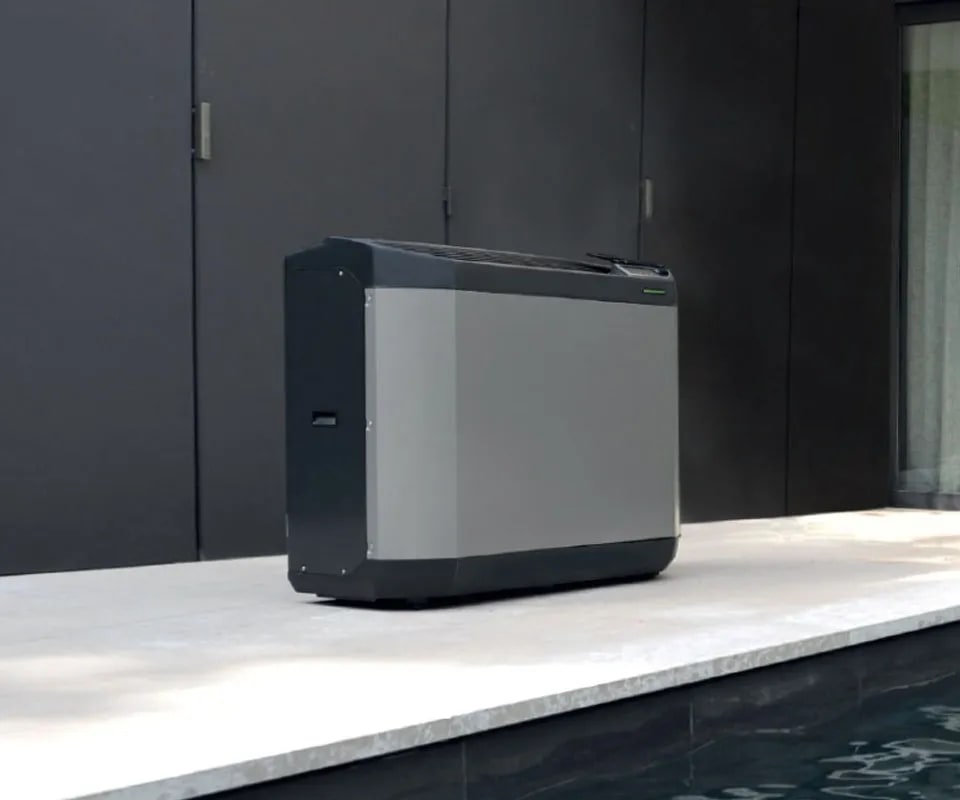

With its sleek lines and refined design, the Z400 iQ disappears elegantly into your pool's surroundings. Currently available in modern aluminium grey.

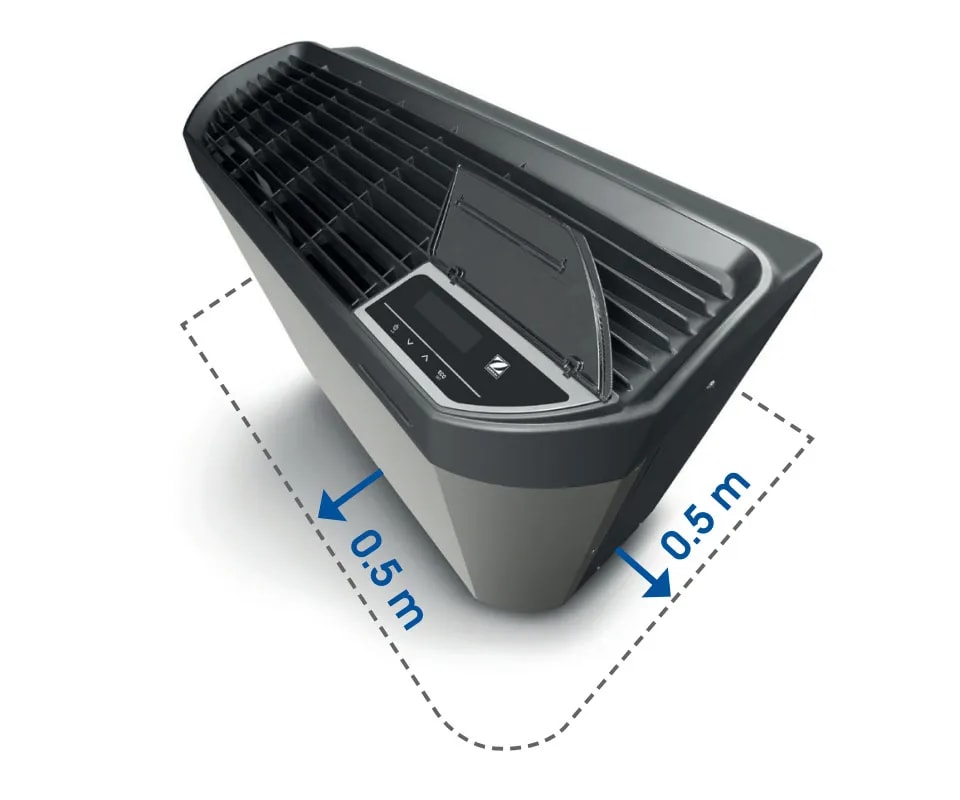

Traditional horizontal air-discharge heat pumps require several metres of space in front of them. The Z400 iQ heat pump, with its vertical air outlet, reduces the free area footprint by 70%. Discreet, it can fit around all pools, even in confined spaces. The Z400 iQ also knows how to go unnoticed, halving the noise with SILENCE mode - no complaints from the kids or neighbours to worry about!
| Specification | WH000287 | WH000288 | WH000289 | WH000290 | WH000291 | WH000292 | WH000295 | WH000299 | WH000348 | WH000350 | WH000374 | WH000382 | WH000383 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Recommended Pool Volume* | 30-50m³ | 30-50m³ | 40-75m³ | 40-75m³ | 50-80m³ | 50-80m³ | - | - | 30-50m³ | 40-75m³ | 30-50m³ | 30-50m³ | 40-75m³ |
Hydraulic Connection | PVC half unions Ø50, to be glued | PVC half unions Ø50, to be glued | PVC half unions Ø50, to be glued | PVC half unions Ø50, to be glued | PVC half unions Ø50, to be glued | PVC half unions Ø50, to be glued | - | - | PVC half unions Ø50, to be glued | PVC half unions Ø50, to be glued | PVC half unions Ø50, to be glued | PVC half unions Ø50, to be glued | PVC half unions Ø50, to be glued |
Power Supply | 230V/1/50Hz | 230V/1/50Hz | 230V/1/50Hz | 230V/1/50Hz | 230V/1/50Hz | 230V/1/50Hz | - | - | 230V/1/50Hz | 230V/1/50Hz | 230V/1/50Hz | 230V/1/50Hz | 230V/1/50Hz |
Dimensions (W x D x H) | 1030mm × 479mm × 880mm | 1030mm × 479mm × 880mm | 1030mm × 479mm × 880mm | 1030mm × 479mm × 880mm | 1030mm × 479mm × 1027mm | 1030mm × 479mm × 1027mm | - | - | 1030mm × 479mm × 880mm | 1030mm × 479mm × 880mm | 1030mm × 479mm × 880mm | 1030mm × 479mm × 880mm | 1030mm × 479mm × 880mm |
Sound pressure at 10 m (dB(A)) (Boost/Silent Mode) | 36/33 | 36/33 | 37/35 | 37/35 | 38/35 | 38/35 | - | - | 36/33 | 37/35 | 36/33 | 36/33 | 37/35 |
Power Returned | 9.5kW | 9.5kW | 13.6 | 13.6 | 17 | 17 | - | - | 9.5kW | 13.6 | 9.5kW | 9.5kW | 13.6 |
Power Consumed | 1.6kW | 1.6kW | 2.5kW | 2.5kW | 3.2kW | 3.2kW | - | - | 1.6kW | 2.5kW | 1.6kW | 1.6kW | 2.5kW |
Average COP (Coefficient Of Performance) | 5.8 | 5.8 | 5.5 | 5.5 | 5.4 | 5.4 | - | - | 5.8 | 5.5 | 5.8 | 5.8 | 5.5 |
Z400 iQ Pool Heat Pump - Brochure
Z400 iQ Pool Heat Pump - Manual
